Kerberos Debug Notes

Some notes for Kerberos debugging in a secure HDP setup:

  1. Setting Debug Logs
    To enable debug logs in Java for Kerberos sun.security.krb5.debug needs to be set to true. Doing this for Hadoop can be done in the hadoop-env.sh file by adding it to the HADOOP_OPTS environment variable:

    Additionally the HADOOP_JAAS_DEBUG variable can be set also:

    Receiving traces in bash/shell can be enabled by setting the following environment variable:
  2. Testing auth_to_local Settings
    Setting the auth_to_local rules correclty can be quite crucial. This is especially true for KDS trust environments. The rules can be easily tested with the HadoopKerberosName call of Hadoop security. You can run it as:



Automated Kerberos Install for HDP w/ Ambari + Puppet

With the release of Ambari 2.x kerberizing a HDP install improved quite a bit. Looking back at Kerberized Hadoop Cluster – A Sandbox Example compared to today most of the there described steps are much easier by now and can be automated. For long I was looking to include it into my existing Vagrant project for an end to end setup of a kerberized cluster. With the writing of this post I finally had the opportunity to do so.

In this post I would like to describe the parts added to the Vagrant setting needed to accomplish an end to end setup of a kerberized HDP cluster. Before the final step of the cluster setup by using the Ambari REST API, a KDC with credentials needs to be created. A Puppet module was created and included to achieve the installation of a MIT Kerberos install. Continue reading “Automated Kerberos Install for HDP w/ Ambari + Puppet”

Secure Kafka Java Producer with Kerberos

The most recent release of Kafka 0.9 with it’s comprehensive security implementation has reached an important milestone. In his blog post Kafka Security 101 Ismael from Confluent describes the security features part of the release very well.

As a part II of the here published post about Kafka Security with Kerberos this post discussed a sample implementation of a Java Kafka producer with authentication. It is part of a mini series of posts discussing secure HDP clients, connecting services to a secured cluster, and kerberizing the HDP Sandbox (Download HDP Sandbox). In this effort at the end of this post we will also create a Kafka Servlet to publish messages to a secured broker.

Kafka provides SSL and Kerberos authentication. Only Kerberos is discussed here. Continue reading “Secure Kafka Java Producer with Kerberos”

A Secure HDFS Client Example

It takes about 3 lines of Java code to write a simple HDFS client that can further be used to upload, read or list files. Here is an example:

This file system API gives the developer a generic interface to (any supported) file system depending on the protocol being use, in this case hdfs. This is enough to alter data on the Hadoop Distributed Filesystem, for example to list all the files under the root folder:

For a secured environment this is not enough, because you would need to consider these further aspects:

  1. A secure protocol
  2. Authentication with Kerberos
  3. Impersonation (proxy user), if designed as a service

What we discuss here for a sample HDFS client can in variance also be applied to other Hadoop clients.

Continue reading “A Secure HDFS Client Example”

Connecting Tomcat to a Kerberized HDP Cluster

At some point you might require to connect your dashboard, data ingestion service or similar to a secured and kerberized HDP cluster. Most Java based webcontainers do support Kerberos for both client and server side communication. Kerberos does require very thoughtful configuration but rewards it’s users with an almost completely transparent authentication implementation that simply works. Steps described in this post should enable you to connect your application with a secured HDP cluster. For further support read the links listed at the end of this writing. A sample project is provided on github for hands-on exercises. Continue reading “Connecting Tomcat to a Kerberized HDP Cluster”

Kafka Security with Kerberos

Apache Kafka developed as a durable and fast messaging queue handling real-time data feeds originally did not come with any security approach. Similar to Hadoop Kafka at the beginning was expected to be used in a trusted environment focusing on functionality instead of compliance. With the ever growing popularity and the widespread use of Kafka the community recently picked up traction around a complete security design including authentication with Kerberos and SSL, encryption, and authorization. Judging by the details of the security proposal found here the complete security measures will be included with the 0.9 release of Apache Kafka.

The releases of HDP 2.3 already today support a secure implementation of Kafka with authentication and authorization. Especially the integration with the security framework Apache Ranger this becomes a comprehensive security solution for any Hadoop deployment with real-time data demands. In this post we by example look at how working with a kerberized Kafka broker is different from before. Here working with the known shell tools and a custom Java producer. Continue reading “Kafka Security with Kerberos”

Installing Ranger with Ambari Blueprints

With the new release of HDP 2.3 comes Ambari 2.1 that brings among other improvements the provisioning and management of Apache Ranger. Ranger together with new agents for a centralized authorization management brings a new KMS key storage for HDFS encryption. HDP components in Ambari can be installed and configured through blueprints that are described in a JSON notation. Continue reading “Installing Ranger with Ambari Blueprints”

Hadoop Credential API

In Hadoop 2.6 a fundamental feature was introduced that did not get much attention but will play an important role moving forward – the Credential API. Looking ahead the Credential Management Framework (CMF) will play an important role for the pluggable token authentication framework, column encryption in ORC files, or the transparent data encryption. But not only future components but applications build for Hadoop can benefit from it. Continue reading “Hadoop Credential API”

Installing HttpFS Gateway on a Kerberized Cluster

HttpFS gateway is the preferred way of accessing the Hadoop filesystem using HTTP clients like curl. Additionally it can be used from from the  hadoop fs command line tool ultimately being a replacement for the hftp protocol. HttpFS, unlike HDFS Proxy, has full support for all file operations with additional support for authentication. Given it’s stateless protocol it is ideal to scale out Hadoop filesystem access using HTTP clients.

In this post I would like to show how to install and setup a HttpFS gateway on a secure and kerberized cluster. By providing some troubleshooting topics, this post should also help you, when running into problems while installing the gateway. Continue reading “Installing HttpFS Gateway on a Kerberized Cluster”

Securing Your Datalake With Apache Argus – Part 1

Apache Argus, the Apache open source project, with it’s comprehensive security offering for today’s Hadoop installations is likely to become an important cornerstone of modern enterprise BigData architectures. It’s by today already quite sophisticate compared to other product offerings.

Key aspects of Argus are the Administration, Authorization, and Audit Logging covering most security demands. In the future we might even see Data Protection (encryption) as well.

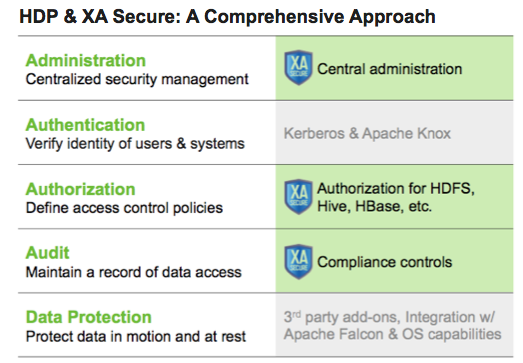

Argus a Comphrensive ApproachArgus consists of four major components that tied together build a secure layer around your Hadoop installation. Within Argus it is the Administration Portal, a web application, that is capable of managing and accessing the Audit Server and Policy Manager, also two important components of Apache Argus. At the client side or a the Hadoop services like the HiveServer2 or the NameNode Argus installs specific agents that encapsulate requests based on the policies specified.

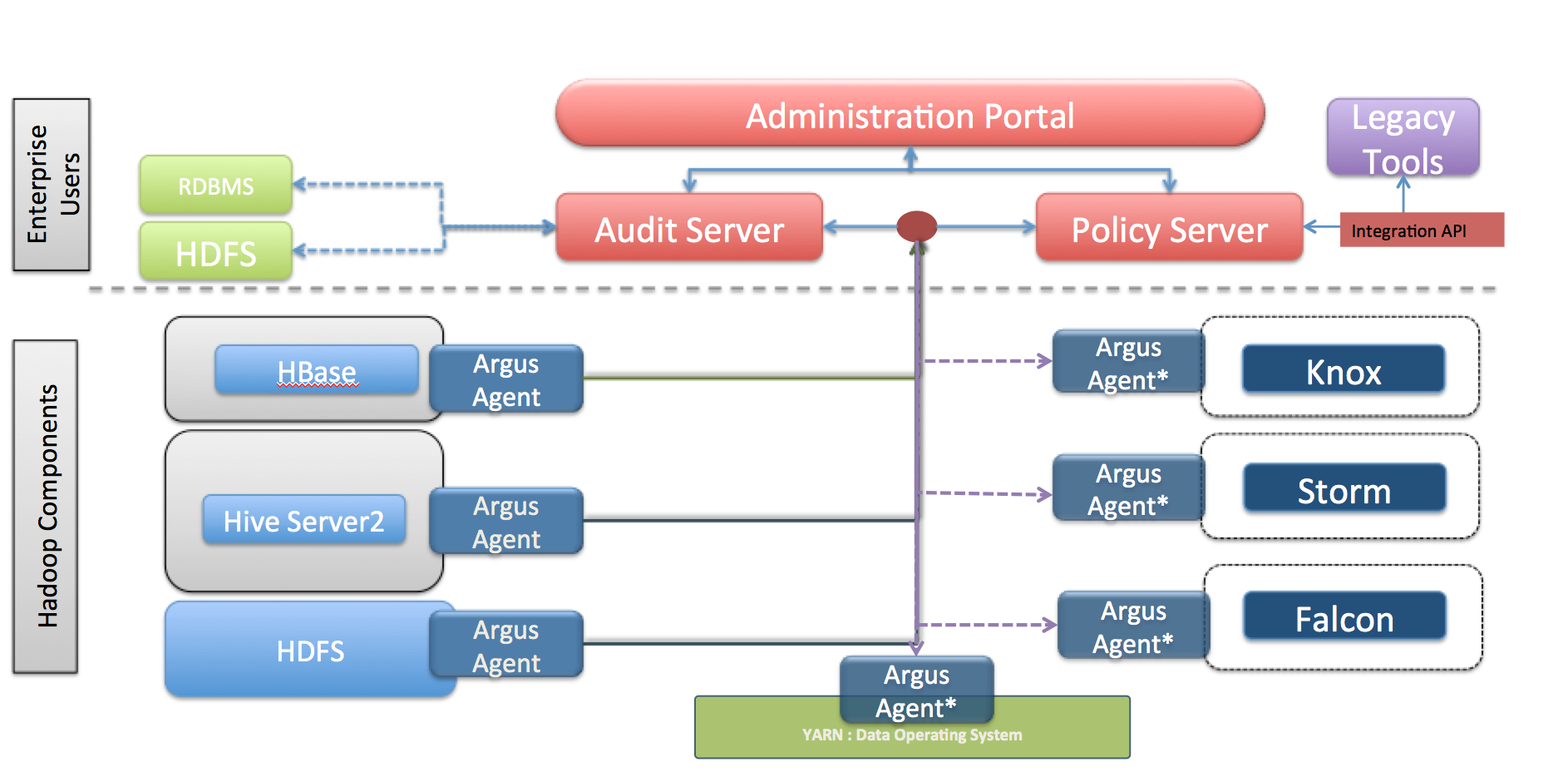

Argus Architectur OverviewA key aspect of Argus is, that the clients don’t have to request the Policy Server on every single client call, but are updated in a certain interval. This improves the scalability and also ensures that clients continue working even when the Policy Server is down.

Let’s go ahead an install a most recent version of Apache Argus using the HDP Sandbox 2.1. By installing the Policy Manager, Hive, and HDFS Agent you should have a pretty good idea of how Argus operates and a pretty solid environment to test specific use cases.

In this part we’ll only install the Policy Manager of Argus synced together with our OpenLdap installation for user and group management. We will use our kerberized HDP Sandbox throughout this post. Continue reading “Securing Your Datalake With Apache Argus – Part 1”
